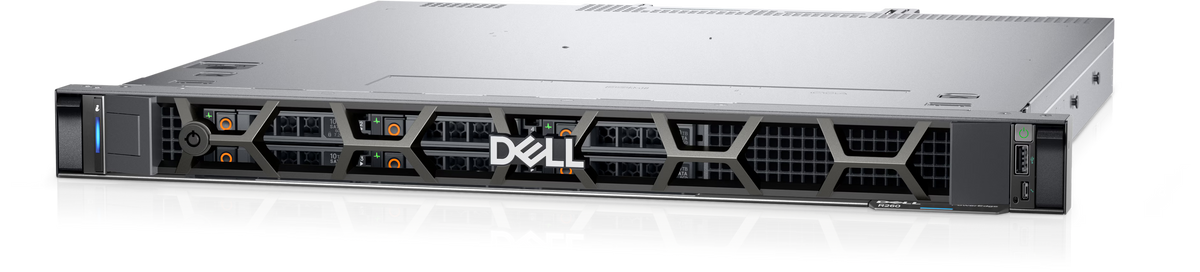

PowerEdge R260 17-in chassis for Near-Edge and SMB applications
PowerEdge R260 17-in chassis for Near-Edge and SMB applications
Regular price
$1,899.00 USD
Regular price
Sale price
$1,899.00 USD
PowerEdge R260
Deliver powerful compute with a single
processor server
The R260 is a newly designed short-depth 1-socket rack server
tailored for SMB and Near-Edge customers, offering the power
and flexibility to keep them at the forefront of technology
More Flexibility and Protection for Near-Edge Deployment
For Near-Edge applications including deployment in warehouses, retail offices, or a simple desk or shelf, the
R260 adapts to any environment with its short-depth, 17-inch chassis. In addition, the R260 is equipped with an
easy-to-manage filter bezel that shields the inner hardware from dust and grease, ensuring unobstructed airflow to
main components resulting in fewer failures or performance issues, better acoustics, and efficient power consumption.
Affordable Entry Rack Server with Enterprise-level Features and Capabilities
Affordability does not compromise performance. The R260 is an enterprise-level server that features reliable
hardware, latest generation processors and memory, advanced boot options and secure IT infrastructure. In addition,
the R260 supports different upgrade options for both hardware and software to meet a wide range of customer needs.
Cyber Resilient Architecture for Zero Trust IT environment & operations
Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site
integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication
(MFA) and role-based access controls ensure trusted operations.
Increase efficiency and accelerate operations with autonomous collaboration
The Dell OpenManage systems management portfolio tames the complexity of managing and securing IT
infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by
reducing process and information silos in order to focus on growing the business. The Dell OpenManage portfolio is
the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your
technology environment.
Sustainability
From recycled materials in our products and packaging, to thoughtful, innovative options for energy efficiency, the
PowerEdge portfolio is designed to make, deliver, and recycle products to help reduce the carbon footprint and lower
your operation costs. We even make it easy to retire legacy systems
responsibly with Dell Technologies.
Services
Rest easier with Dell Technologies Services. Maximize your PowerEdge
Servers with comprehensive services ranging from Consulting, to
ProDeploy and ProSupport suites, Data Migration and more – available
across 170 countries and backed by our 60K+ employees and partners.
PowerEdge R260
Deliver powerful compute with a single
processor server
The R260 is a newly designed short-depth 1-socket rack server
tailored for SMB and Near-Edge customers, offering the power
and flexibility to keep them at the forefront of technology.
For Near-Edge applications including deployment in warehouses, retail offices, or a simple desk or shelf, the
R260 adapts to any environment with its short-depth, 17-inch chassis. In addition, the R260 is equipped with an
easy-to-manage filter bezel that shields the inner hardware from dust and grease, ensuring unobstructed airflow to
main components resulting in fewer failures or performance issues, better acoustics, and efficient power consumption.
Affordable Entry Rack Server with Enterprise-level Features and Capabilities
Affordability does not compromise performance. The R260 is an enterprise-level server that features reliable
hardware, latest generation processors and memory, advanced boot options and secure IT infrastructure. In addition,
the R260 supports different upgrade options for both hardware and software to meet a wide range of customer needs.
Cyber Resilient Architecture for Zero Trust IT environment & operations
Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site
integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication
(MFA) and role-based access controls ensure trusted operations.
Increase efficiency and accelerate operations with autonomous collaboration
The Dell OpenManage systems management portfolio tames the complexity of managing and securing IT
infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by
reducing process and information silos in order to focus on growing the business. The Dell OpenManage portfolio is
the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your
technology environment.
Sustainability
From recycled materials in our products and packaging, to thoughtful, innovative options for energy efficiency, the
PowerEdge portfolio is designed to make, deliver, and recycle products to help reduce the carbon footprint and lower
your operation costs. We even make it easy to retire legacy systems
responsibly with Dell Technologies.
Services
Rest easier with Dell Technologies Services. Maximize your PowerEdge
Servers with comprehensive services ranging from Consulting, to
ProDeploy and ProSupport suites, Data Migration and more – available
across 170 countries and backed by our 60K+ employees and partners.
PowerEdge R260
Deliver powerful compute with a single
processor server
The R260 is a newly designed short-depth 1-socket rack server
tailored for SMB and Near-Edge customers, offering the power
and flexibility to keep them at the forefront of technology.
Specification Sheet
PowerEdge R260
R260 is the newly-designed short-depth
rack server with filter bezel for Near-
Edge customers. Featuring the latest
Intel® Xeon® 6300 series or Intel®
Xeon® E-2400 series processor, DDR5
memory, NVMe BOSS, and Energy Star
4.0 PSU, the R260 is ready to support
customers growing businesses.
• Mailing and Messaging
• Near-Edge Applications
• Collaboration and Sharing
Feature Technical Specifications
Processor One Intel® Xeon® 6300 series or one Intel® Xeon® E-2400 series processor with up to 8 cores or
One Intel® Pentium® G7400/G7400T processor with 2 cores
Memory • 4 DDR5 DIMM slots, supports UDIMM 128 GB max, speeds up to 4400 MT/s
• Supports unregistered ECC DDR5 DIMMs only
Storage controllers • Internal Controllers: HBA355i Adpt, PERC H355 Adpt, PERC H755 Adpt
• Internal Boot: Internal USB 3.0, or Boot Optimized Storage Subsystem (BOSS-N1)
HWRAID 2 x M.2 SSDs
• External HBAs (non-RAID): HBA355e Adpt
• Software Controller: S160
Drive Bays Front bays:
• Up to 2 x 3.5-inch cable SAS/SATA HDD, max 32 TB
• Up to 6 x 2.5-inch hot-plug SAS/SATA HDD/SSD, max 46.08TB
Power Supplies • 450 W Platinum 100 — 240 VAC, non redundant
• 700 W Titanium 200 — 240 VAC or 240 VDC, non redundant
Cooling Options Air cooling
Fans • Up to six cabled fans
Dimensions • Height – 42.8 mm (1.68 inches)
• Width – 482.0 mm (18.97 inches)
• Depth – 461.14 mm (18.15 inches) without bezel
• Depth – 496.8 mm (19.55 inches) with bezel
• Depth – 426.6 mm (16.80 inches) with cable PSU and without bezel
Form Factor 1U rack server
Embedded Management • iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Manual
Bezel Security bezel or optional Filter bezel
OpenManage Software • OpenManage Enterprise
• OpenManage Power Manager plugin
• OpenManage Service plugin
• OpenManage Update Manager plugin
• CloudIQ for PowerEdge plug in
• OpenManage Enterprise Integration for VMware vCenter
• OpenManage Integration for Microsoft System Center
• OpenManage Integration with Windows Admin Center
Mobility OpenManage Mobile
OpenManage Integrations • BMC Truesight
• Microsoft System Center
• OpenManage Integration with ServiceNow
• Red Hat Ansible Modules
• Terraform Providers
• VMware vCenter and vRealize Operations Manager
Security • Cryptographically signed firmware
• Data at Rest Encryption (SEDs with local or external key mgmt)
• Secure Boot
• Secured Component Verification (Hardware integrity check)
• Secure Erase
• Secured-core server
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC 2 x 1 GbE LOM
GPU Options N/A
Ports Front Ports
• 1 x iDRAC Direct (Micro-AB USB) port
• 1 x USB 2.0
Rear Ports
• 1 x Dedicated iDRAC Ethernet port
• 1 x USB 2.0
• 1 x USB 3.2 Gen1
• 1 x VGA
• 1 x Serial
Internal Ports
• 1 x USB 3.2 Gen1
PCIe Up to two PCIe Gen4 slots on the Gen4 Riser
• Slot 1: 1 x8 with x8 bandwidth, Half Length, Low Profile
• Slot 2: 1 x16 with x8 bandwidth, Half Length, Low Profile
Processor One Intel® Xeon® 6300 series or one Intel® Xeon® E-2400 series processor with up to 8 cores or
One Intel® Pentium® G7400/G7400T processor with 2 cores
Memory • 4 DDR5 DIMM slots, supports UDIMM 128 GB max, speeds up to 4400 MT/s
• Supports unregistered ECC DDR5 DIMMs only
Storage controllers • Internal Controllers: HBA355i Adpt, PERC H355 Adpt, PERC H755 Adpt
• Internal Boot: Internal USB 3.0, or Boot Optimized Storage Subsystem (BOSS-N1)
HWRAID 2 x M.2 SSDs
• External HBAs (non-RAID): HBA355e Adpt
• Software Controller: S160
Drive Bays Front bays:
• Up to 2 x 3.5-inch cable SAS/SATA HDD, max 32 TB
• Up to 6 x 2.5-inch hot-plug SAS/SATA HDD/SSD, max 46.08TB
Power Supplies • 450 W Platinum 100 — 240 VAC, non redundant
• 700 W Titanium 200 — 240 VAC or 240 VDC, non redundant
Cooling Options Air cooling
Fans • Up to six cabled fans
Dimensions • Height – 42.8 mm (1.68 inches)
• Width – 482.0 mm (18.97 inches)
• Depth – 461.14 mm (18.15 inches) without bezel
• Depth – 496.8 mm (19.55 inches) with bezel
• Depth – 426.6 mm (16.80 inches) with cable PSU and without bezel
Form Factor 1U rack server
Embedded Management • iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Manual
Bezel Security bezel or optional Filter bezel
OpenManage Software • OpenManage Enterprise
• OpenManage Power Manager plugin
• OpenManage Service plugin
• OpenManage Update Manager plugin
• CloudIQ for PowerEdge plug in
• OpenManage Enterprise Integration for VMware vCenter
• OpenManage Integration for Microsoft System Center
• OpenManage Integration with Windows Admin Center
Mobility OpenManage Mobile
OpenManage Integrations • BMC Truesight
• Microsoft System Center
• OpenManage Integration with ServiceNow
• Red Hat Ansible Modules
• Terraform Providers
• VMware vCenter and vRealize Operations Manager
Security • Cryptographically signed firmware
• Data at Rest Encryption (SEDs with local or external key mgmt)
• Secure Boot
• Secured Component Verification (Hardware integrity check)
• Secure Erase
• Secured-core server
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC 2 x 1 GbE LOM
GPU Options N/A
Ports Front Ports
• 1 x iDRAC Direct (Micro-AB USB) port
• 1 x USB 2.0
Rear Ports
• 1 x Dedicated iDRAC Ethernet port
• 1 x USB 2.0
• 1 x USB 3.2 Gen1
• 1 x VGA
• 1 x Serial
Internal Ports
• 1 x USB 3.2 Gen1
PCIe Up to two PCIe Gen4 slots on the Gen4 Riser
• Slot 1: 1 x8 with x8 bandwidth, Half Length, Low Profile
• Slot 2: 1 x16 with x8 bandwidth, Half Length, Low Profile
